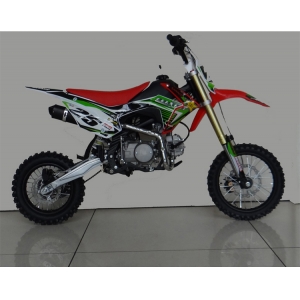

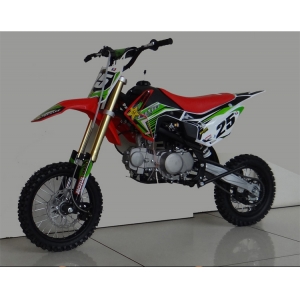

yinxiang lifan engine 125cc pit bike with CE certificate

Home > Dirt bike/pit bike > gasoline > yinxiang lifan engine 125cc pit bike with CE certificate

Product Description: DETAILS

Engine: 125CC, single cyclinder, 4-stroke, air cooled

Bore X Stroke: 54*54mm

Compression Ratio: 9.2:1

Max power 6.5kw/7500rpm

Min Fuel Consumption <=367g/KW.H

Max torquer: 8.0N.m/ 5000rpm

Taansmission system all up gear, N-1-2-3-4

lgnition mode CDI electronic ignition

Suspension system Front fork:770mm length up-side-down suspenssion

Rear shock: 325mm length high performance

Brake system

hydraulic disc brake, special designed disc for sufficient brake, disc size: front: 220mm, rear: 190mm

Maximum load 187lb/(85kgs)

Tank Capacity 0.9gal(us)/(3.4L)

G.W/N.W 87kgs/82kgs

Carburetor PZ-22

Dimensions(L*W*H) 1630mm*760mm*1090mm

Carton size 1420mm*430mm*650mm

Container 60units 20FT

Seat Height 720mm

Wheel base 48in/1215mm

Ground Clearance 11.4in/290mm

Engine and Rear sprocket 41T, 420# Chains.

Rim Size Front 1.40-14/ Rear 1.85-12
